Product Description
Magician X FDM 3D Printer: Innovator of Auto-Leveling
|
MINGDA Magician X
Auto leveling out of the box beginner 3D Printer |
|
MINGDA Magician X
Auto leveling out of the box beginner 3D Printer |
MINGDA Magician X--An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures more accurate and silent printing.
|
Auto-Leveling
One touch smart Auto Leveing
Multi Connecction
Innovative U disk printing |
|
Fast Assembly
Modular structure
Ultra-Silent Printing
Enjoy a happy printing time |
|
|
Auto-Leveling
One touch smart Auto Leveing
Multi Connecction
Innovative U disk printing |
|
Fast Assembly
Modular structure
Ultra-Silent Printing
Enjoy a happy printing time |
|
Technical Specifications ● Print Technology: FDM ( Fused Deposition Modeling) ● Build Volume: 230(L)*230(W)*260(H)mm ● Print Resolution: ± 0.1mm ● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm ● Nozzle Number: Single ● Nozzle Diameter: 0.4mm ● Print Speed: <200mm/s (recommended 60 - 80mm/s) ● Support Filaments: PLA, TPU, ABS, PETG ● Slicing Software: Cura ● Input Formats: .STL, .OBJ, .AMF ● Output Formats: GCODE ● Connection Mode: SD Card, U Disk, USB-C ● Input voltage: 100/240 V AC, 50/60Hz ● Output voltage: 24V (350W) ● Ambient operating Temperature: 5℃ - 40℃ ● Operational Nozzle Temperature: max ≤260℃ ● Operational Hot Bed Temperature: max ≤110℃ ● Machine Size: 460mm*415mm*546mm ● Machine Weight: ~7.4kg |
|
Technical Specifications ● Print Technology: FDM ( Fused Deposition Modeling) ● Build Volume: 230(L)*230(W)*260(H)mm ● Print Resolution: ± 0.1mm ● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm ● Nozzle Number: Single ● Nozzle Diameter: 0.4mm ● Print Speed: <200mm/s (recommended 60 - 80mm/s) ● Support Filaments: PLA, TPU, ABS, PETG ● Slicing Software: Cura ● Input Formats: .STL, .OBJ, .AMF ● Output Formats: GCODE ● Connection Mode: SD Card, U Disk, USB-C ● Input voltage: 100/240 V AC, 50/60Hz ● Output voltage: 24V (350W) ● Ambient operating Temperature: 5℃ - 40℃ ● Operational Nozzle Temperature: max ≤260℃ ● Operational Hot Bed Temperature: max ≤110℃ ● Machine Size: 460mm*415mm*546mm ● Machine Weight: ~7.4kg |
Innovator of Auto-Leveling
Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,one- touch leveling and 16-point precise leveling.
Ready to Print
Integrated structure and modular design ,one step assemble, ready to print
Ultra-Silent Printing
Ultra-quiet mechanical structure
Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.
Cooling Fans
The printing head adopts fan, cools down models rapidly. The printing speed is faster which can reach 100mm/s.
Double Gears Direct Extrusion
Conveying material uniform without winding
Automatic Filament Detection
Broken material can be automatically detected
Multi Connection
Support SD card, USB and USB-C, supports online printing
Patented Dual Z-Axis with Synchronous Belt
Ensure the accuracy of the print head in the X-axis direction
Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.
Filament Holder
Can be flexibly assembledon the left and right sides
Build-in Tool Box
Convenient after using the tool
3.5" large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.
Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,
running more stable,≤50dB silent printing
Newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction，memory protection unit
|

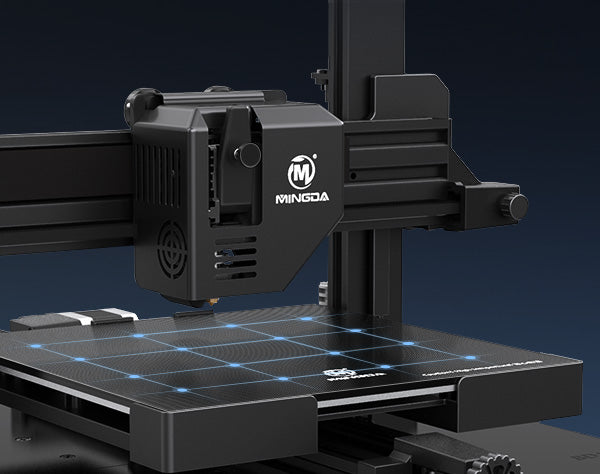

Innovator of Auto-Leveling
Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,one- touch leveling and 16-point precise leveling. |

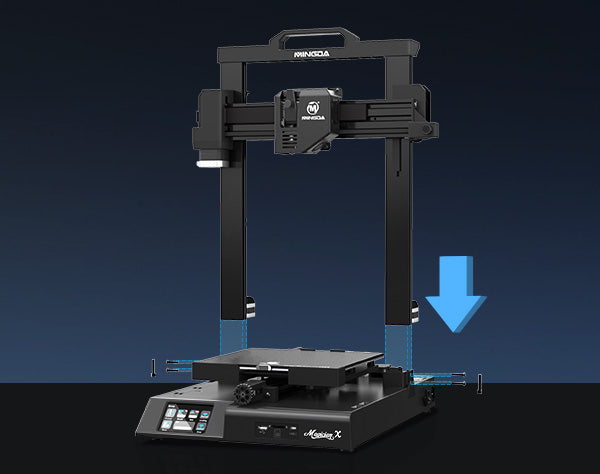

Ready to Print
Integrated structure and modular design, one step assemble, ready to print |
Ultra-Silent Printing
Ultra-quiet mechanical structure |
|
Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof. |
Cooling Fans
The printing head adopts fan, cools down models rapidly. The printing speed is faster which can reach 100mm/s. |

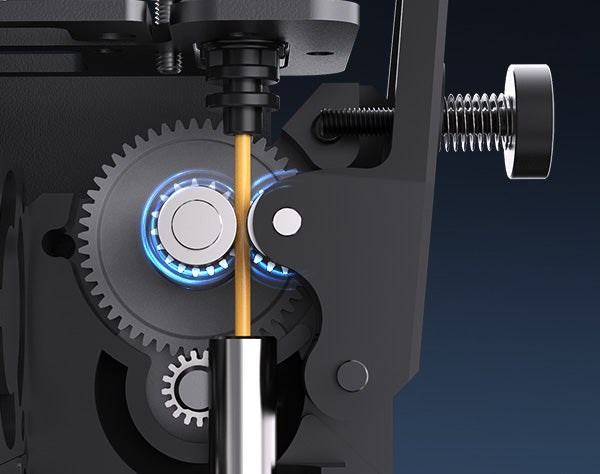

Double Gears Direct Extrusion
Conveying material uniform without winding |
|
Automatic Filament Detection
Broken material can be automatically detected |
Multi Connection
Support SD card, USB and USB-C, supports online printing |
Patented Dual Z-Axis with Synchronous Belt
Ensure the accuracy of the print head in the X-axis direction |
|
Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose. |
Filament Holder
Can be flexibly assembled on the left and right sides |
Build-in Tool Box
Convenient after using the tool |
|
3.5" large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation. |
Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing |
Newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction，memory protection unit |
Parts List
Filament
|
User manual
|
Filament holder
|
Tool box cover
|
M5*25 (2pcs)
|
M4*20 (4pcs)
|
SD card
|
Teflon tube
|
Nozzle
|
Power cable
|
Wrench
|
Allen wrench
|
M3*8 (2pcs)
|
Parts List
|
Filament
|
User manual
|
Filament holder
|
Tool box cover
|
M5*25 (2pcs)
|
M4*20 (4pcs)
|
|
SD card
|
Teflon tube
|
Nozzle
|
Power cable
|
Wrench
|
Allen wrench
|
|
M3*8 (2pcs)
|
MINGDA Care
 |
|
 |
Slicer
/ Cura |
 |
Test model
/ 1.0 |
 |
|
 |
Service
We offer excellent after-sales service. Please click here for details. |
