Product Description
Magician Max FDM 3D Printer: Innovator of Auto-Leveling
MINGDA Magician Max--An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and a smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures more accurate and silent printing.
|
Auto-Leveling
One touch smart Auto Leveing
Multi Connecction
Support USB-C,SD card and U Disk; Support online printing |
|
Fast Assembly
Modular structure
Ultra-Silent Printing
The mechanical structure is ultra-quiet, and the chip is ultra-quiet. |
|
|
Auto-Leveling
One touch smart Auto Leveing
Multi Connecction
Support USB-C,SD card and U Disk; Support online printing |
|
Fast Assembly
Modular structure
Ultra-Silent Printing
The mechanical structure is ultra-quiet, and the chip is ultra-quiet. |
|
Technical Specifications ● Print Technology: FDM ( Fused Deposition Modeling) ● Build Volume: 320(L)*320(W)*400(H)mm ● Print Resolution: ± 0.1mm ● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm ● Nozzle Number: Single ● Nozzle Diameter: 0.4mm ● Print Speed: <200mm/s (recommended 60 - 80mm/s) ● Support Filaments: PLA, TPU, ABS, PETG ● Scling Software: Cura ● Input Formats: .STL, .OBJ, .AMF ● Output Formats: GCODE ● Connection Mode: SD Card, U Disk, USB-C ● Input voltage: 100/240 V AC, 60/50Hz ● Output voltage: 24V/14.6A (350W) ● Ambient operating Temperature: 5℃ - 40℃ ● Operational Nozzle Temperature: max ≤260℃ ● Operational Hot Bed Temperature: max ≤110℃ ● Machine Size: 555mm*430mm*660mm ● Machine Weight: 10kg |
|
Technical Specifications ● Print Technology: FDM ( Fused Deposition Modeling) ● Build Volume: 320(L)*320(W)*400(H)mm ● Print Resolution: ± 0.1mm ● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm ● Nozzle Number: Single ● Nozzle Diameter: 0.4mm ● Print Speed: <200mm/s (recommended 60 - 80mm/s) ● Support Filaments: PLA, TPU, ABS, PETG ● Slicing Software: Cura ● Input Formats: .STL, .OBJ, .AMF ● Output Formats: GCODE ● Connection Mode: SD Card, U Disk, USB-C ● Input voltage: 100/240 V AC, 60/50Hz ● Output voltage: 24V/14.6A (350W) ● Ambient operating Temperature: 5℃ - 40℃ ● Operational Nozzle Temperature: max ≤260℃ ● Operational Hot Bed Temperature: max ≤110℃ ● Machine Size: 555mm*430mm*660mm ● Machine Weight: 10kg |
Auto Leveling
Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor, 16-point precise leveling.
Large Printing Size
400*400*400mmCreates more possibilities
Ultra-Silent Printing
Ultra-quiet mechanical structure
Ready to Print
One step assemble, ready to print
Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.
Double Gears Direct Extrusion
Conveying material uniform without winding
Automatic Filament Detection
Broken material can be automatically detected
Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,
running more stable,≤50dB silent printing
Newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction，memory protection unit
Dual Z-Axis
with Synchronous Belt
Improve the accuracy,with Synchronous Belt
keep the “layer shift” away.
Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.
Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.
Build-in Tool Box
Convenient after using the tool
3.5" large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.
Multi Connection
Support SD card, USB and USB-C, supports online printing
|
Auto Leveling
Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor, 16-point precise leveling. |
Large Printing Size
320*320*400mm Creates more possibilities |
Ultra-Silent Printing
Ultra-quiet mechanical structure |
|
Ready to Print
One step assemble, ready to print |
Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s. |
Double Gears Direct Extrusion
Conveying material uniform without winding |
|
Automatic Filament Detection
Broken material can be automatically detected |
Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing |
Newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction，memory protection unit |
|

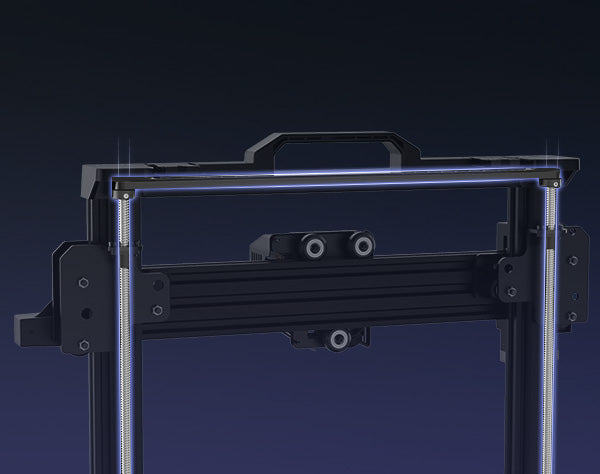

Dual Z-Axis with Synchronous Belt
Improve the accuracy, keep the “layer shift” away. |
Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof. |
Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose. |
|
Build-in Tool Box
Convenient after using the tool |
3.5" large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation. |
Multi Connection
Support SD card, USB and USB-C, supports online printing |
Parts List
Filament
|
User manual
|
Filament holder
|
Tool box cover
|
M5*25 (2pcs)
|
M4*20 (4pcs)
|
SD card
|
Teflon tube
|
Nozzle
|
Power cable
|
Wrench
|
Allen wrench
|
M3*8 (2pcs)
|
Parts List
|
Filament
|
User manual
|
Filament holder
|
Tool box cover
|
M5*25 (2pcs)
|
M4*20 (4pcs)
|
|
SD card
|
Teflon tube
|
Nozzle
|
Power cable
|
Wrench
|
Allen wrench
|
|
M3*8 (2pcs)
|
MINGDA Care
 |
|
 |
Slicer
/ Cura |
 |
Test model
/ 1.0 |
 |
|
 |
Service
We offer excellent after-sales service. Please click here for details. |
MINGDA Care
|
|
Slicer
/ Cura |
Test model
/ 1.0 |
|
Service
We offer excellent after-sales service. Please click here for details. |
