Product Description
|
6" 2K Monochrome LCD
A much longer lifespan: It’s s 4 times longer than color LCD. FEP Film Quick Replacement
Integrated design, prevent leakage. Convenient and easy to replace |
|
One Click Leveling
Say goodbye to the complicated multi-screw leveling, only one key is needed for leveling. High-Speed Printing
With a monochrome screen, the printer can use less energy while printing faster. |
|
|
6" 2K Monochrome LCD
A much longer lifespan: It’s s 4 times longer than color LCD.
FEP Film Quick Replacement
Integrated design, prevent leakage. Convenient and easy to replace
|
|
One Click Leveling
Say goodbye to the complicated multi-screw leveling, only one key is needed for leveling.
High-Speed Printing
With a monochrome screen, the printer can use less energy while printing faster.
|
| Technical Specifications ●Modeling technology : LCD UV Photocuring ●Print Accuracy : XY axis 0.051mm, Z axis 0.01mm ●Printing Speed : 20-30mm/h ●Layer Thickness : 0.02-0.1mm ●Build Volume : 128*81*150mm ●Materials : 405nm Uv-resin ●Screen : 2K Mono Screen ●Single Layer Exposure Time : 1-2S ●Exposure Intensity : 4000μW/cm² ●Operation Screen : 4.3 Inch Touch Screen ●Slicing Software : CHITUBOX ●Rated Power : 54W ●File Format : .stl, .obj ●Connectivity : USB Memory ●Machine Size : φ264x413mm ●N.W : 6.32kg ●G.W : 7.7kg |
|
Technical Specifications ●Modeling technology : LCD UV Photocuring ●Print Accuracy : XY axis 0.051mm, Z axis 0.01mm ●Printing Speed : 20-30mm/h ●Layer Thickness : 0.02-0.1mm ●Build Volume : 128*81*150mm ●Materials : 405nm Uv-resin ●Screen : 2K Mono Screen ●Single Layer Exposure Time : 1-2S ●Exposure Intensity : 4000μW/cm² ●Operation Screen : 4.3 Inch Touch Screen ●Slicing Software : CHITUBOX ●Rated Power : 54W ●File Format : .stl, .obj ●Connectivity : USB Memory ●Machine Size : φ264x413mm ●N.W : 6.32kg ●G.W : 7.7kg |

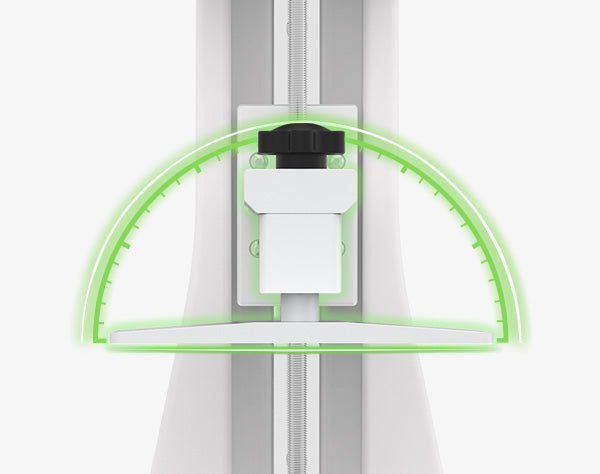

One-key leveling, smart and worry-free
Say goodbye to the complicated multi-screw leveling, only one key is needed for leveling.
New Matrix Parallel Light Source
It has a more uniform exposure, higher efficiency and better heat dissipation.

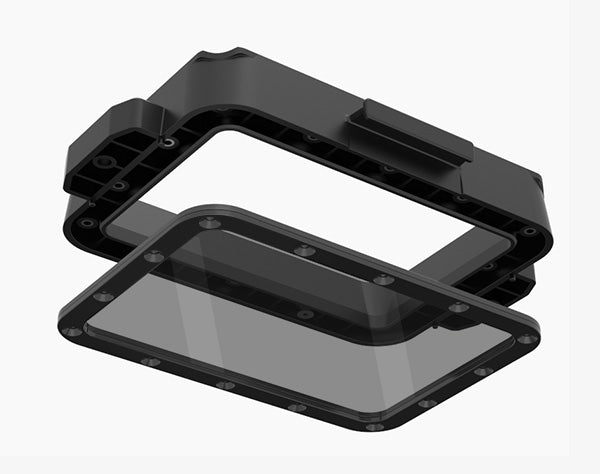

Quick FEP Replacement
Easy and quick to replace the FEP.
Scientific base heat dissipation design

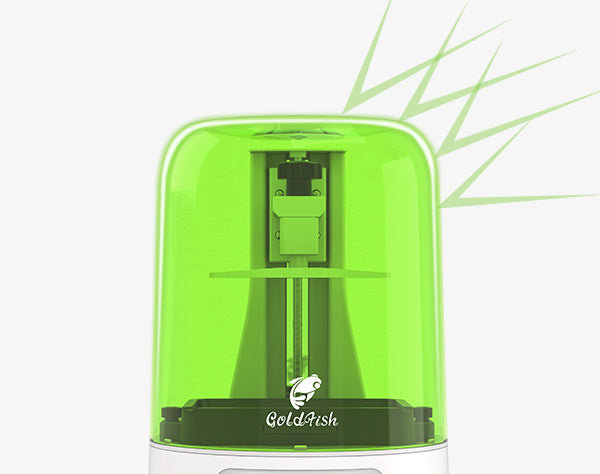

Anti-UV hood,two-way protection
With the transparent cover, you can watch your prints while still blocking 99.95% of the UV light.
Multi-language Interface
The new operating system now supports 12 different languages:Chinese simplified, Chinese traditional, German, French, Russian, English, Japanese, Turkish, Spanish, Italian, Korean, which significantly facilitates worldwide users to use Goldfish X more conveniently.

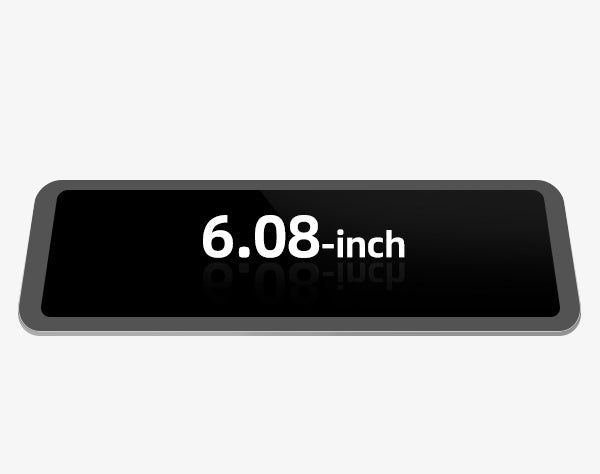

2K Monochrome LCD
The exposure time is reduced to 1.5 seconds. A much longer lifespan: You can print up to 2000 hours with it, which is 4 times longer than color LCD

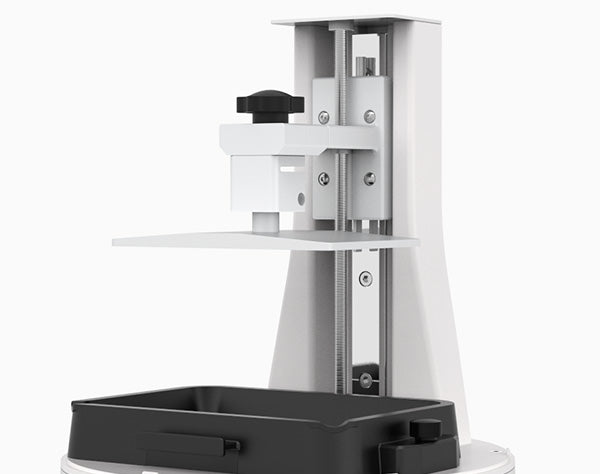

High Quality Z-axis Rail
It improves stability while in motion and reduces the risk of layer shifting.

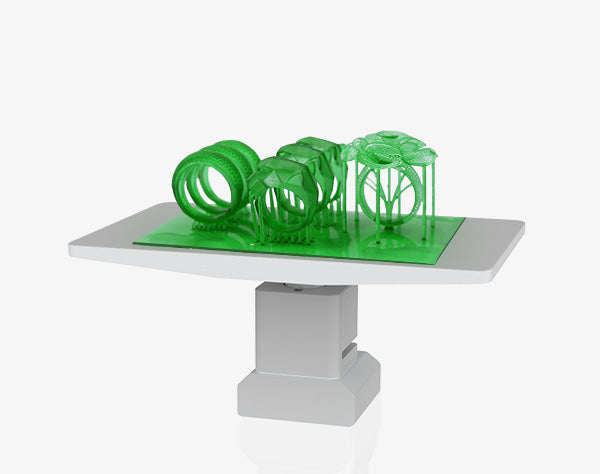

Frosted printing platform, strong adsorption, and easy to get the model

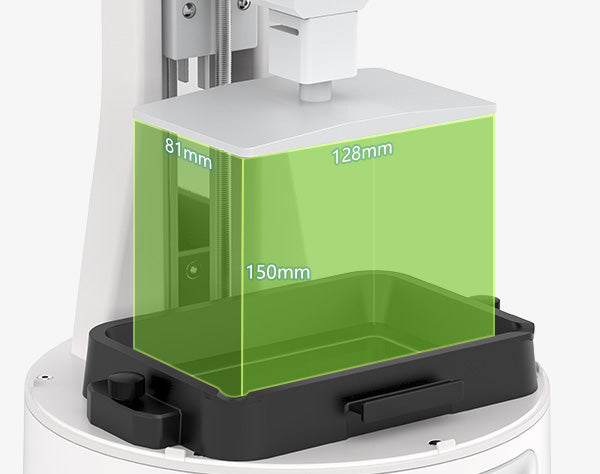

Larger print size

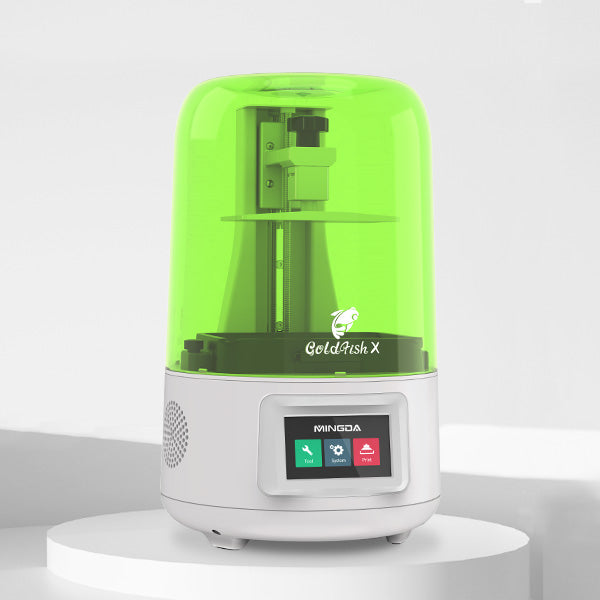

Goldfish X 3D Printer comes with a 6-inch Monochrome LCD that has 2K HD resolution.

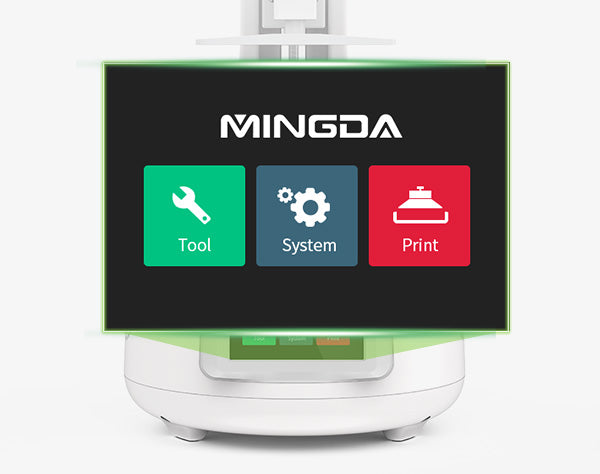

4.3-inch touch screen
simple UI interface, easy operation
Chitu Box Slicer
Chitu Box has been a very helpful companion when you are using Goldfish X resin 3D printers from slicing .stl file to adding supports. With the latest 8-times anti-aliasing function, you can get a much smoother printing surface.|
One-key leveling, smart and worry-free
Say goodbye to the complicated multi-screw leveling, only one key is needed for leveling. |
New Matrix Parallel Light Source
It has a more uniform exposure, higher efficiency and better heat dissipation. |
Quick FEP Replacement
Easy and quick to replace the FEP. |
|
Scientific base heat dissipation design
|
Anti-UV hood,two-way protection
With the transparent cover, you can watch your prints while still blocking 99.95% of the UV light. |
Multi-language Interface
The new operating system now supports 12 different languages:Chinese simplified, Chinese traditional, German, French, Russian, English, Japanese, Turkish, Spanish, Italian, Korean, which significantly facilitates worldwide users to use Goldfish X more conveniently. |
|
2K Monochrome LCD
The exposure time is reduced to 1.5 seconds. A much longer lifespan: You can print up to 2000 hours with it, which is 4 times longer than color LCD. |
High Quality Z-axis Rail
It improves stability while in motion and reduces the risk of layer shifting. |
Frosted printing platform, strong adsorption, and easy to get the model
|
|
Larger print size
Goldfish X 3D Printer comes with a 6-inch Monochrome LCD that has 2K HD resolution. |
4.3-inch touch screen
simple UI interface, easy operation |
Chitu Box Slicer
Chitu Box has been a very helpful companion when you are using Goldfish X resin 3D printers from slicing .stl file to adding supports. With the latest 8-times anti-aliasing function, you can get a much smoother printing surface. |
Parts List
Mask
|
Gloves
|
Knife
|
Wrench
|
Paper Funnel
|
Adapter and Cable
|
USB Memory Stick
|
Parts List
|
Mask
|
Gloves
|
Knife
|
Wrench
|
Paper Funnel
|
Adapter and Cable
|
USB Memory Stick
|
MINGDA Care
 |
Firmware
/ Goldfish_Firmware |
 |
Slicer
/ ChiTuBox |
 |
Test model
/ 1.0 |
 |
|
 |
Service
We offer excellent after-sales service. Please click here for details. |
MINGDA Care
|
Firmware
/ Goldfish_Firmware |
Slicer
/ ChiTuBox |
Test model
/ 1.0 |
|
Service
We offer excellent after-sales service. Please click here for details. |
