Product Description

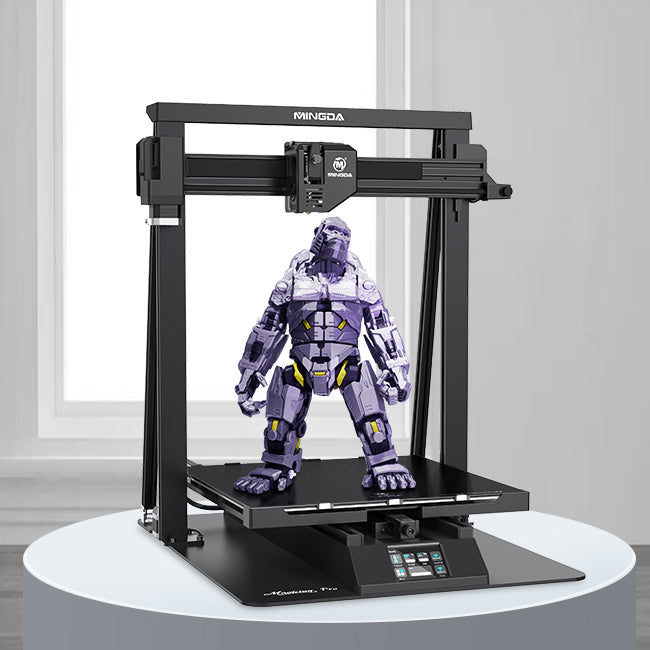

Magician Pro FDM 3D Printer: Innovator of Auto-Leveling

MINGDA Magician Pro--An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and a smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures a more accurate and silent printing.

Auto-Leveling

One touch smart Auto Leveing

Huge Building Size

400*400*400mm

Fast Assembly

Modular structure

Built-in PSU

PSU build-in a closed type, without exposure, which is more secure.

Auto-Leveling

One touch smart Auto Leveing

Huge Building Size

400*400*400mm

Fast Assembly

Modular structure

Built-in PSU

PSU build-in a closed type, without exposure, which is more secure.

Technical Specifications
● Print size: 40×40×40cm (15.7"×15.7"×15.7")
● Calibration: Self-developed Automatic Leveling, 36 Points
● Filament diameter: 1.75 mm
● Printing material: PLA / ABS / PETG & TPU
● Nozzle size: 0.4mm default, wide range of other nozzles supported
● Extuder: Direct Drive,Double Gears
● Filament run-out detection: Support
● Resume Printing: Support
● Tool Box: Yes
● Max nozzle temperature: 260 °C/500 °F
● Max heatbed temperature: 110 °C/230 °F
● Average speed: 8-10 cm/s,3.1-3.9in./s
● Control panel: 3.5 inch colorful LCD touch screen
● Print interface: SD Card,U Disk,USB-C
● Z-axis: Double threaded rod with synchronous belt
● Machine Weight: 14.5kg
● Machine Dimension: 65x58.6x67.5cm / 25.5*23.0*26.5in(X×Y×Z)

Innovator of Auto-Leveling

MINGDA self-developed Auto-Leveling function can automatically compensate the hot bed unevenness. Leveling and printing can be completed with one button, simple operation and great user experience..

Unlock Unlimited Creativity

The size increased again, reaching to 400*400*400mm. Extra-large size for thought running wild.

Smooth & Stable Operation

Double thread Z-axis moving parts to reduce printing wobbles.

User-friendly Touch Screen

The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen;
simple operation.

Get Started Quickly

Modular design allows the printer to be assembled only in 5 minutes, which is very easy to use.

Ultra-Silent Printing

Ultra-quiet mechanical structure

Filament Runout Detection

Equipped with a filament runout sensor, it can monitor the supply of filament intelligently. If your printer runs out of filament, it will automatically stop without losing your printing progress.

Dual Cooling Fans

The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion

Conveying material uniform without winding

Resume printing function

No need to worry about sudden power failure.

Stepping Drive - Ultra Quiet TMC

Use TMC Stepper Motor Drivers,
Super Quiet and Noise Reduction,
running more stable,≤50dB silent printing

Newly upgraded chip of Brand core

High-speed computing; high-performance,
32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction，memory protection unit

Glass Heat Bed

The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.

Multi Connection

Support SD card, USB and USB-C, supports online printing

Belt Tensioner on X/Y Axis

Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

Innovator of Auto-Leveling

MINGDA self-developed Auto-Leveling function can automatically compensate the hot bed unevenness. Leveling and printing can be completed with one button, simple operation and great user experience.
