Regular price $799.00
/

Delivery time: 3-7 days

Return time: within 14 days

SHIP FROM



Please kindly note: Orders placed by EU and USA customers will be shipped from the End of March.

Product Description

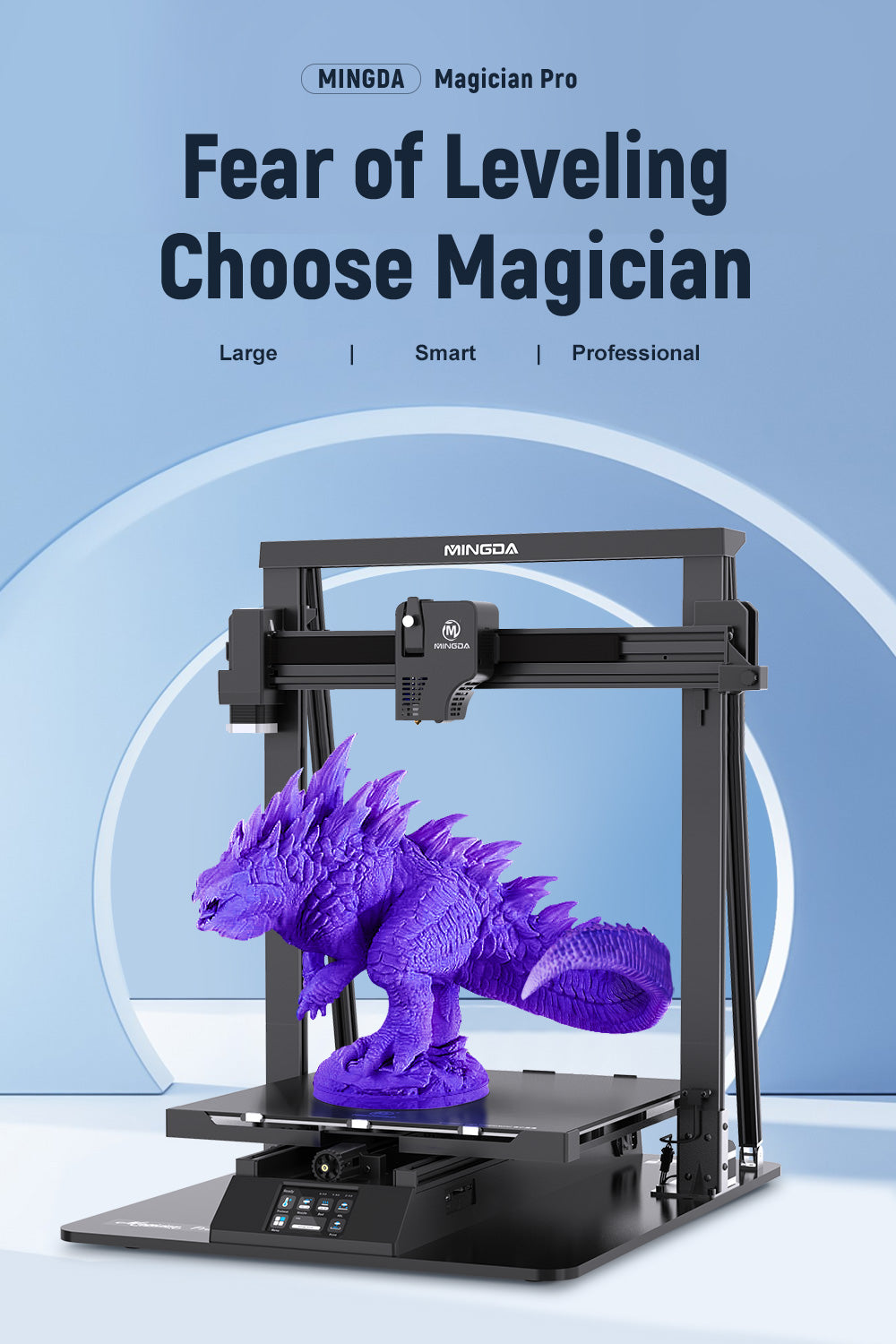

Magician Pro FDM 3D Printer: Innovator of Auto-Leveling

MINGDA Magician Pro--An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and a smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures a more accurate and silent printing.





Auto-Leveling

One touch smart Auto Leveing



Multi Connecction

Support USB-C,SD card and U Disk; Support online printing



Fast Assembly

Modular structure



Ultra-Silent Printing

The mechanical structure is ultra-quiet, and the chip 2209 is ultra-quiet.





Auto-Leveling

One touch smart Auto Leveing





Multi Connecction

Support USB-C,SD card and U Disk; Support online printing





Fast Assembly

Modular structure





Ultra-Silent Printing

The mechanical structure is ultra-quiet, and the chip 2209 is ultra-quiet.

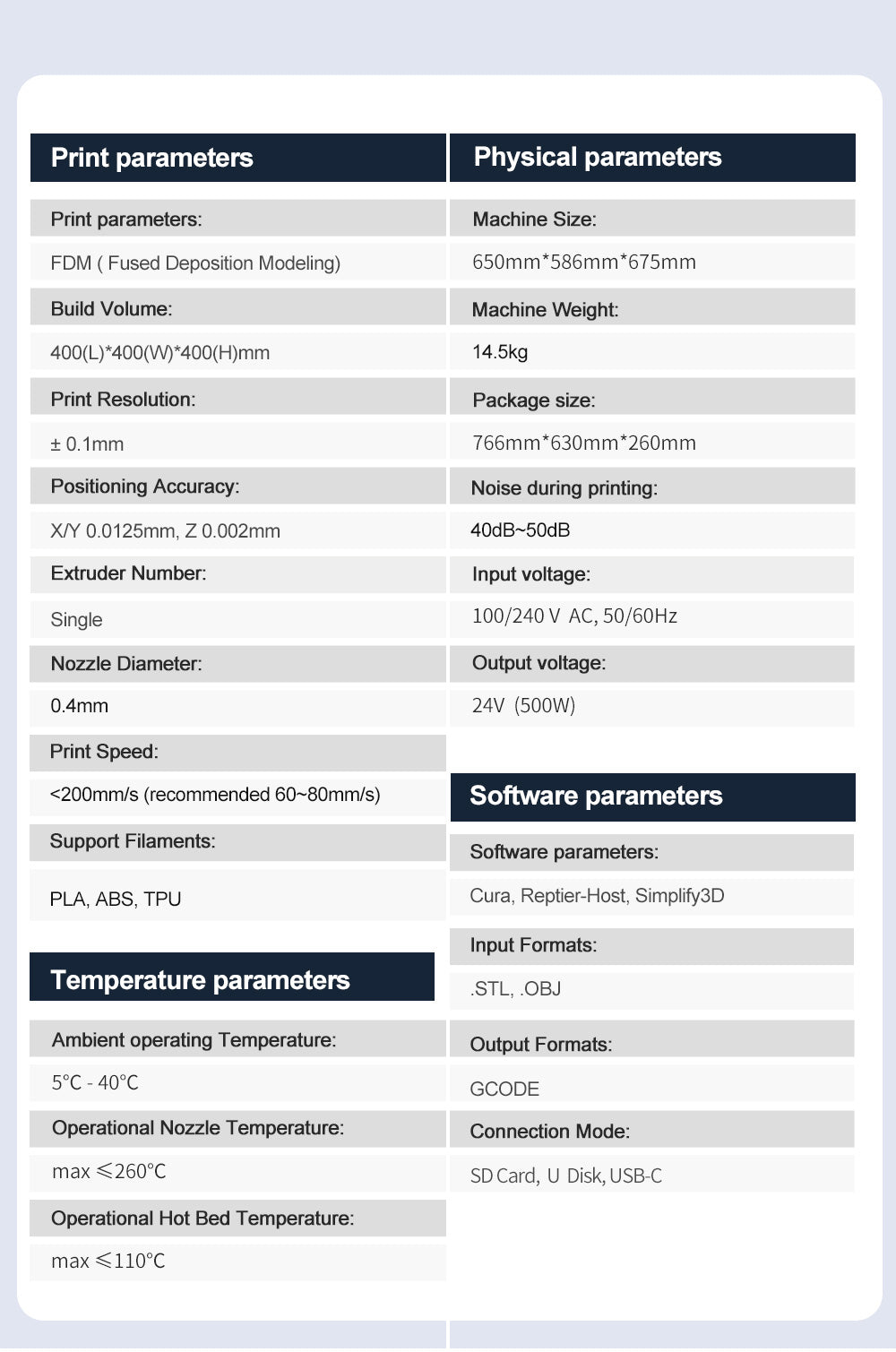

Technical Specifications

● Print parameters: FDM ( Fused Deposition Modeling)
● Build Volume: 400(L)*400(W)*400(H)mm
● Print Resolution: ± 0.1mm
● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
● Extruder Number: Single
● Nozzle Diameter: 0.4mm
● Print Speed: <200mm/s (recommended 60 - 80mm/s)
● Support Filaments: PLA, TPU, ABS
● Software parameters: Cura
● Input Formats: .STL, .OBJ, .AMF
● Output Formats: GCODE
● Connection Mode: SD Card, U Disk, USB-C
● Input voltage: 100/240 V AC, 50/60Hz
● Output voltage: 24V (500W)
● Ambient operating Temperature: 5℃ - 40℃
● Operational Nozzle Temperature: max ≤260℃
● Operational Hot Bed Temperature: max ≤110℃
● Machine Size: 650mm*586mm*675mm
● Machine Weight: 14.5kg

Technical Specifications

● Print parameters: FDM ( Fused Deposition Modeling)
● Build Volume: 400(L)*400(W)*400(H)mm
● Print Resolution: ± 0.1mm
● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
● Extruder Number: Single
● Nozzle Diameter: 0.4mm
● Print Speed: <200mm/s (recommended 60 - 80mm/s)
● Support Filaments: PLA, TPU, ABS
● Software parameters: Cura
● Input Formats: .STL, .OBJ, .AMF
● Output Formats: GCODE
● Connection Mode: SD Card, U Disk, USB-C
● Input voltage: 100/240 V AC, 50/60Hz
● Output voltage: 24V (500W)
● Ambient operating Temperature: 5℃ - 40℃
● Operational Nozzle Temperature: max ≤260℃
● Operational Hot Bed Temperature: max ≤110℃
● Machine Size: 650mm*586mm*675mm
● Machine Weight: 14.5kg

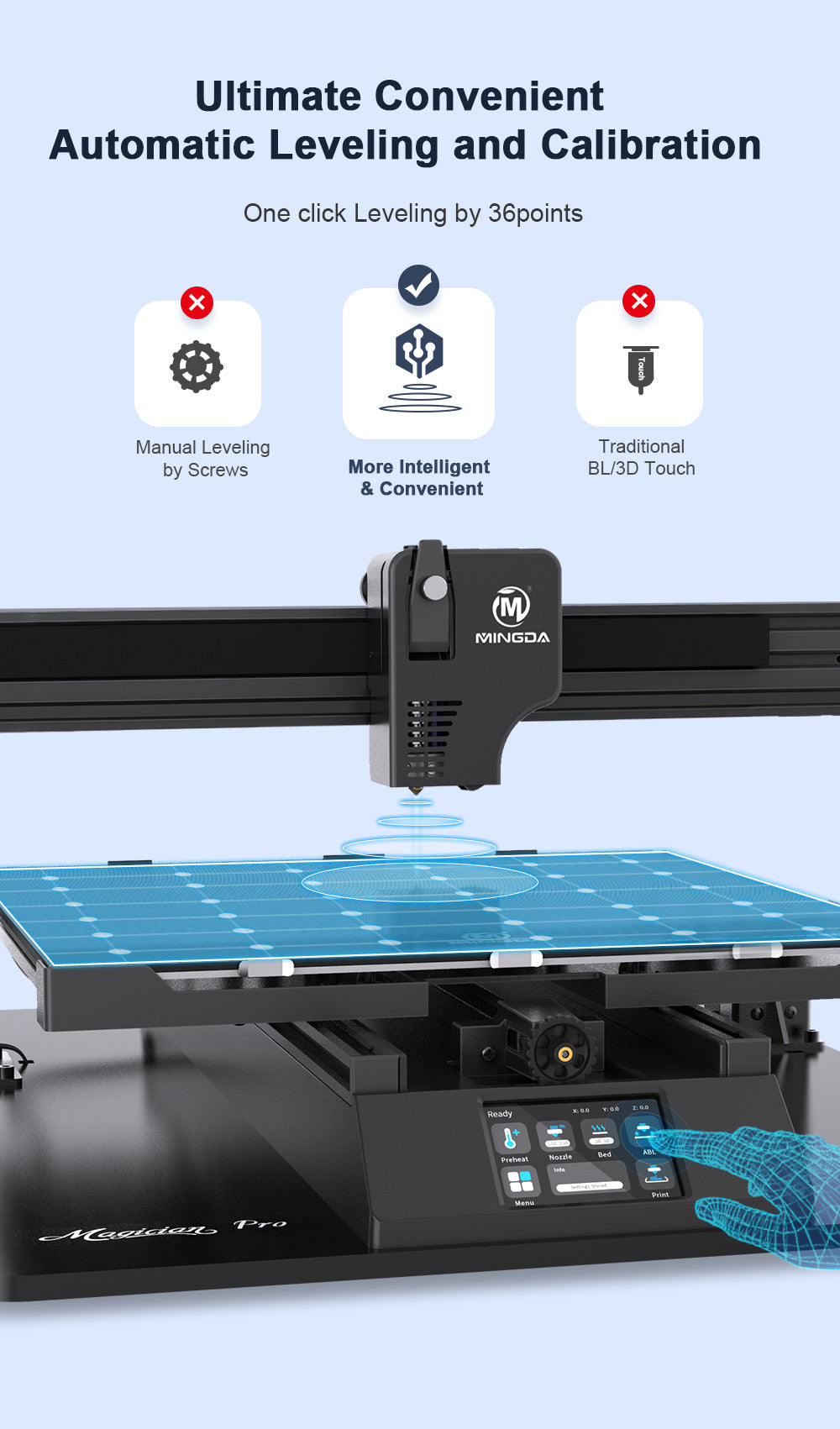

Auto Leveling
Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,
36-point precise leveling.

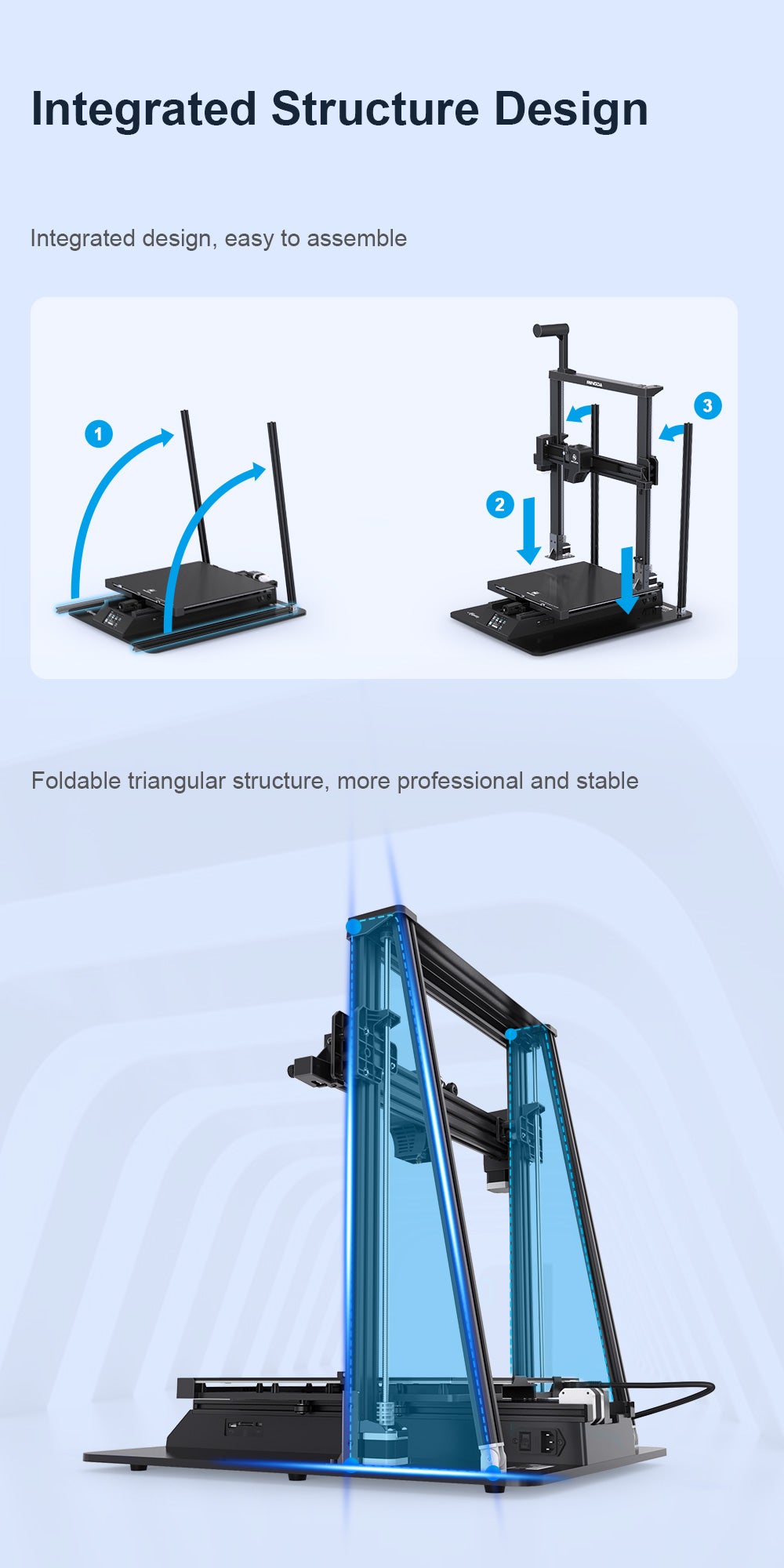

Ready to Print
Integrated design, easy to assemble

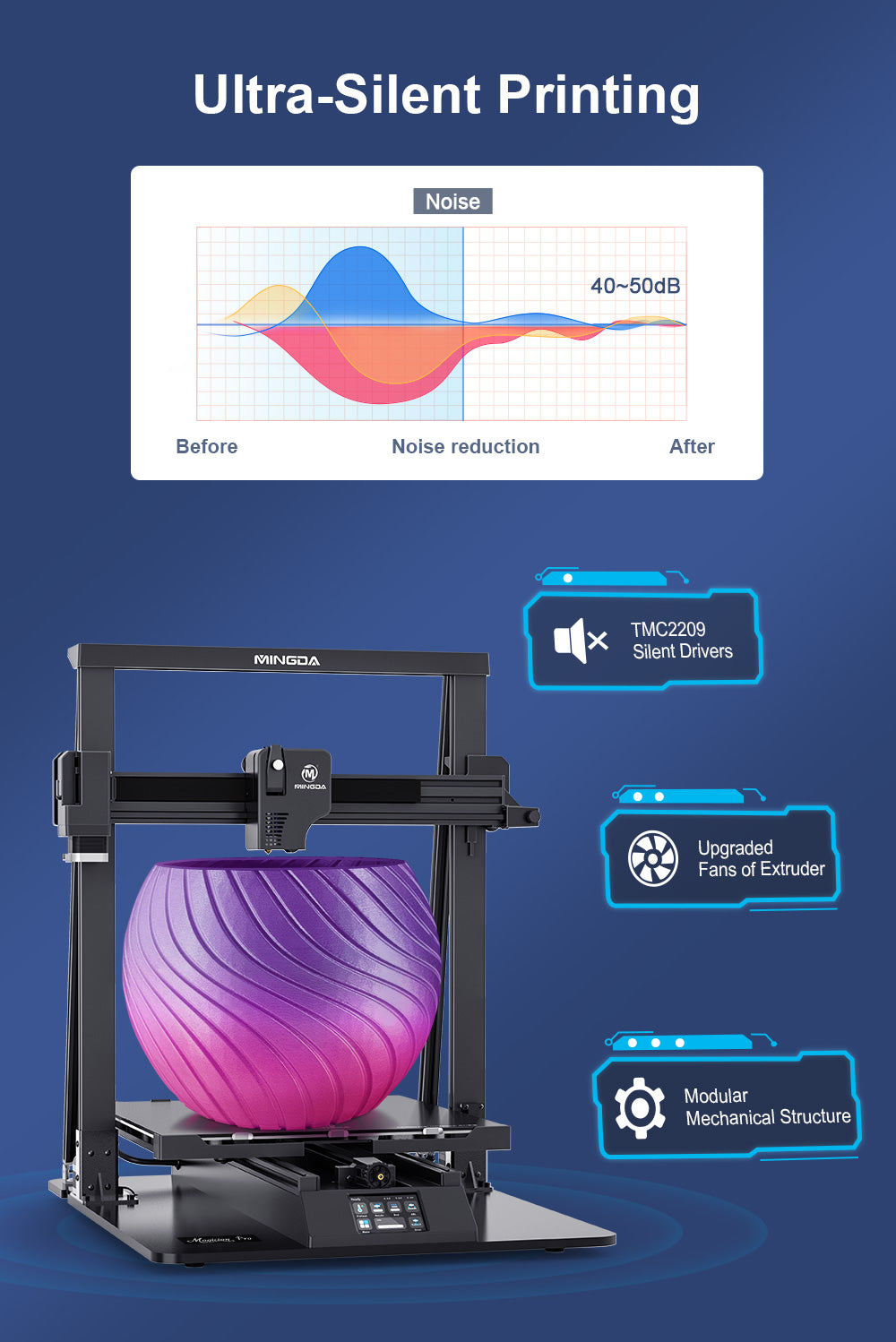

Ultra-Silent Printing
Ultra-quiet mechanical structure

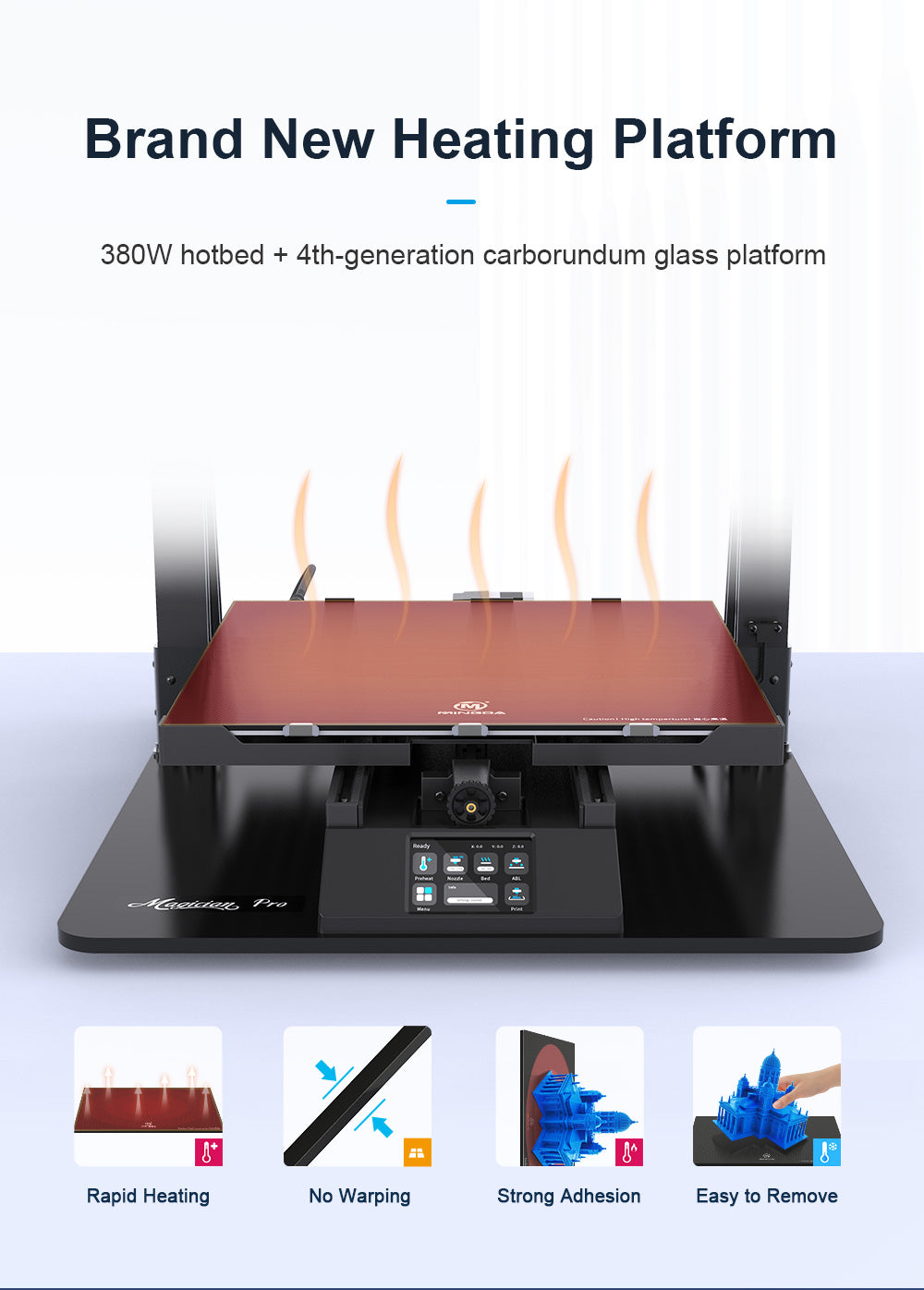

Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.



Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

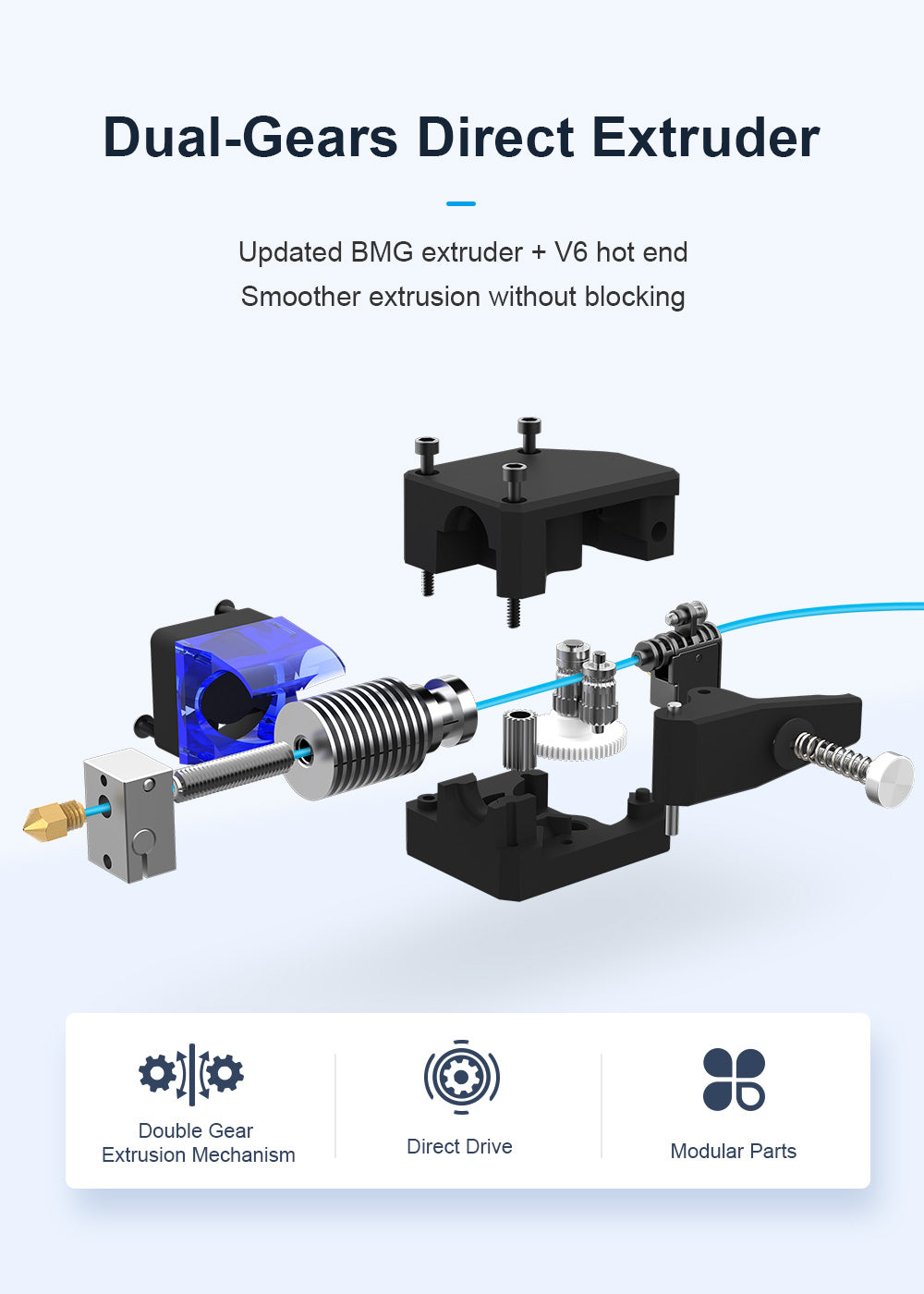

Double Gears Direct Extrusion
Conveying material uniform without winding

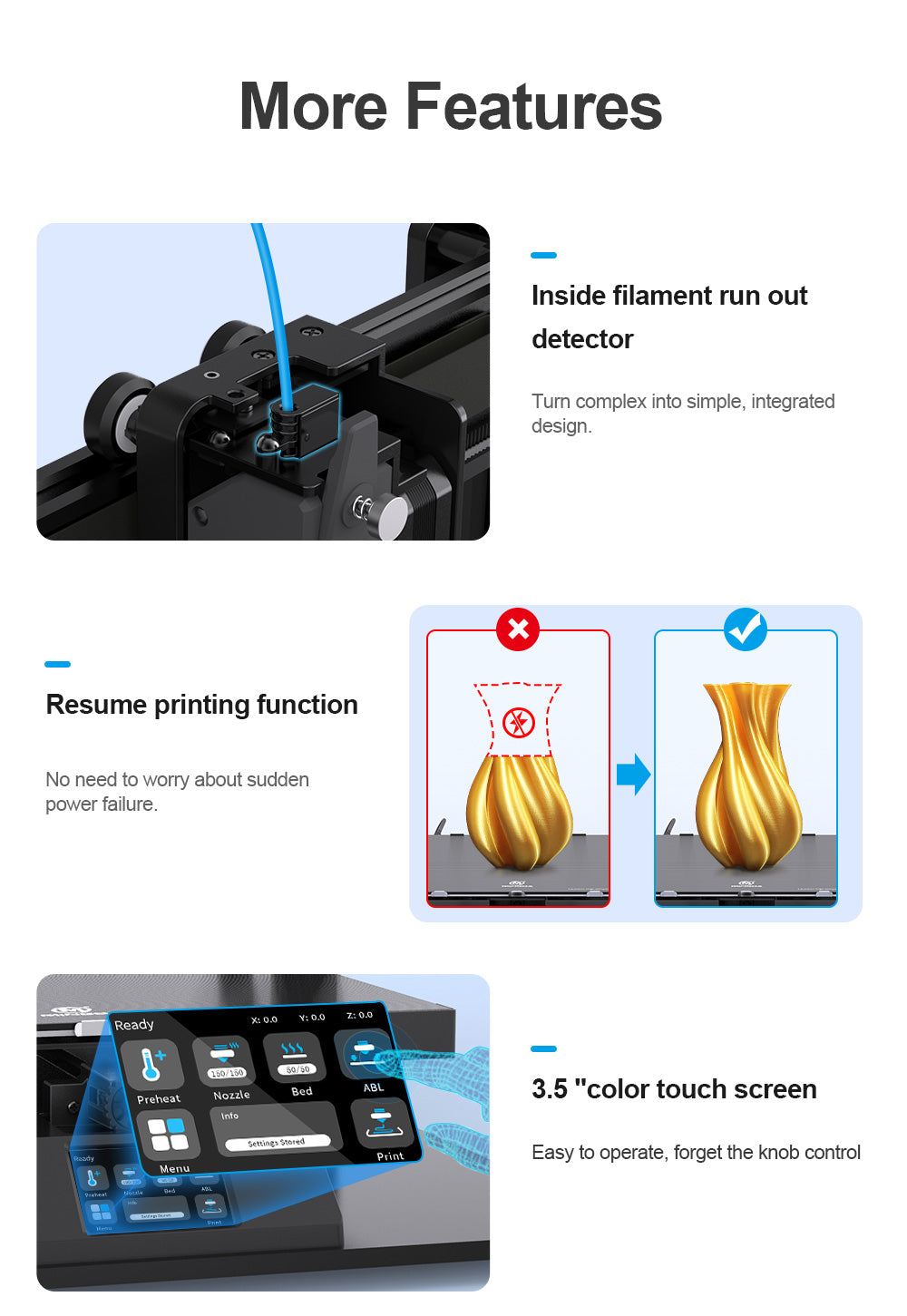

Automatic Filament Detection
Broken material can be automatically detected

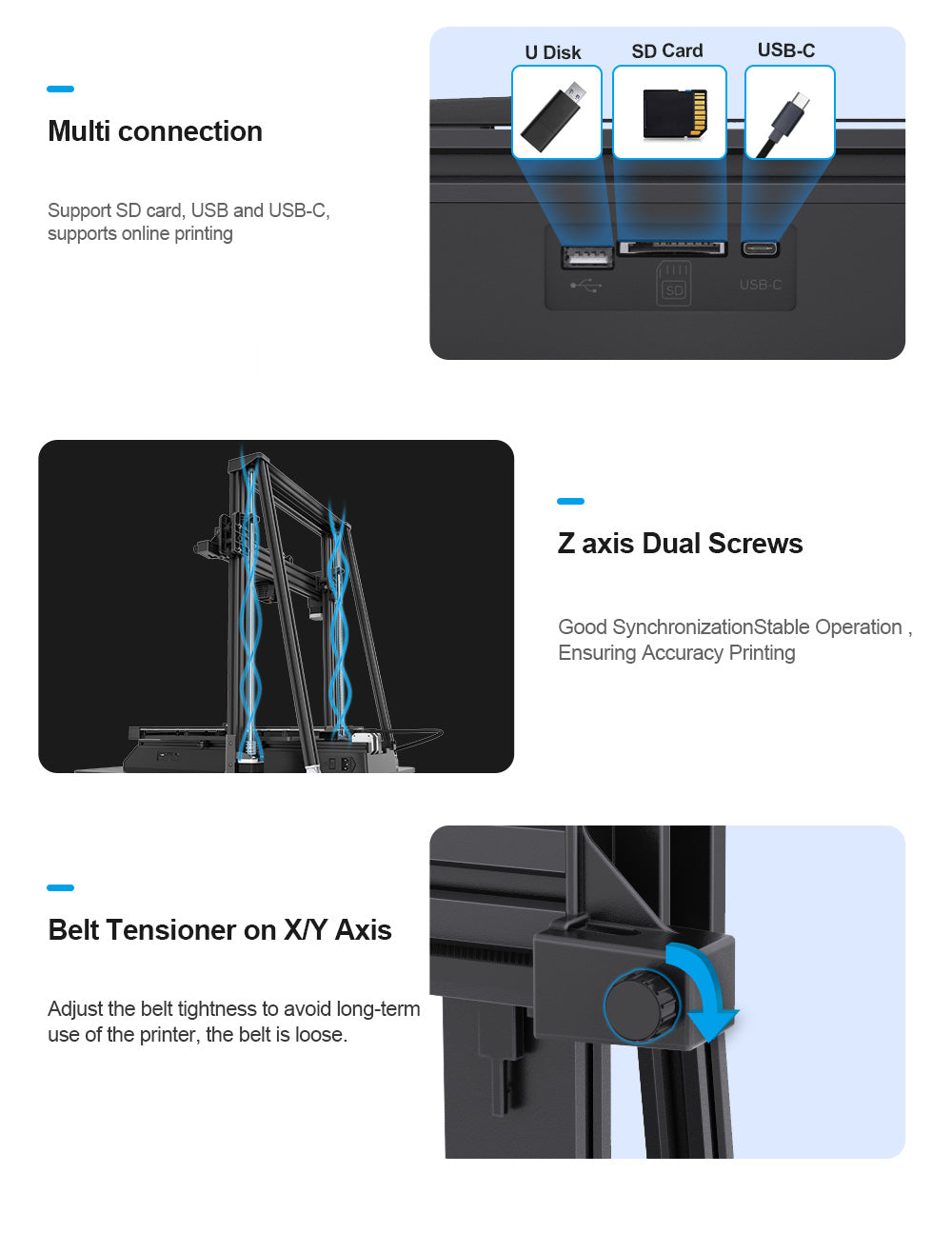

Multi Connection
Support SD card, USB and USB-C, supports online printing



Dual Z-Axis
with Synchronous Belt
Improve the accuracy,
keep the “layer shift” away.



Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.



Resume printing function
No need to worry about sudden power failure.

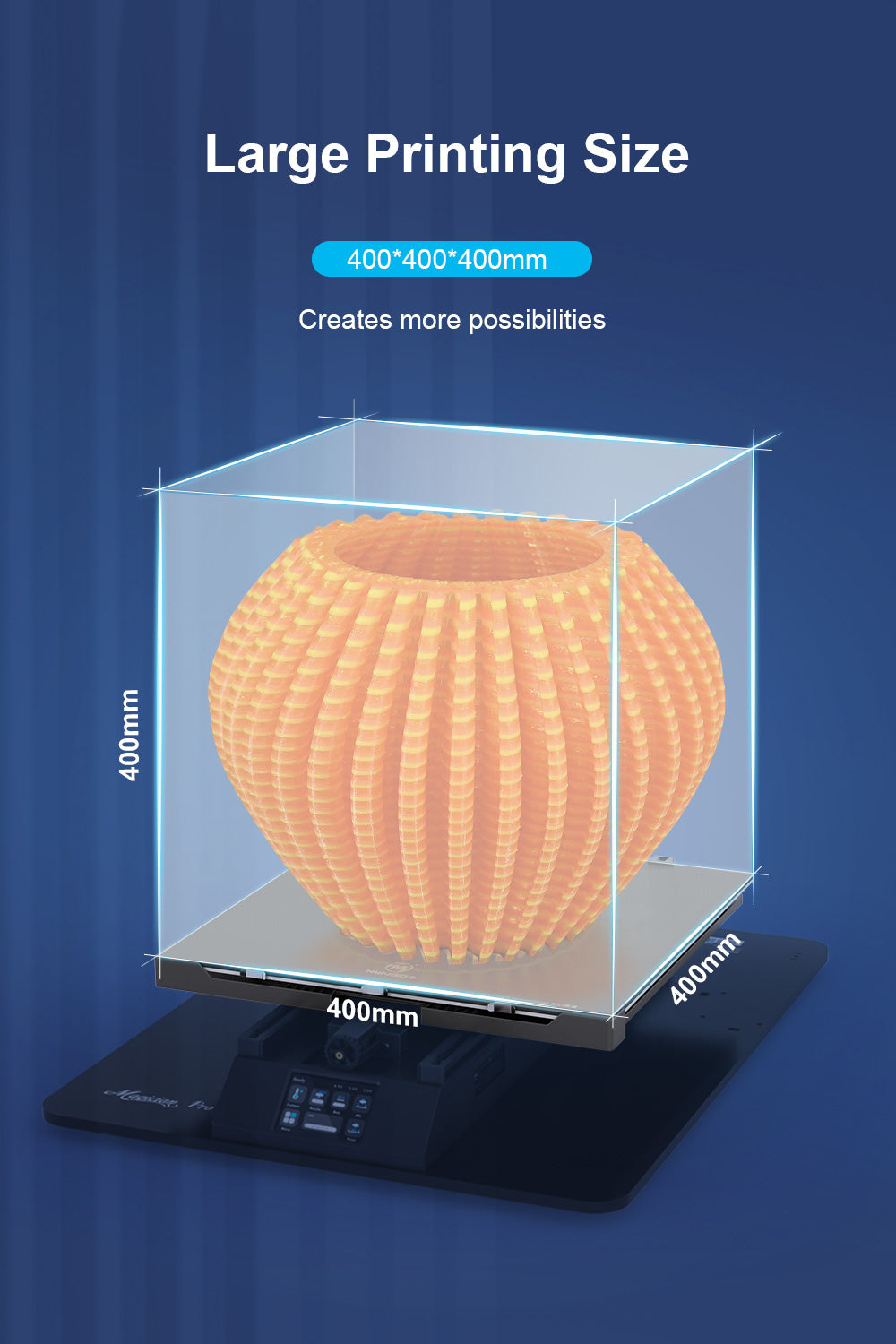

Large Printing Size
400*400*400mm
Creates more possibilities



3.5" large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen;
simple operation.



Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,
Super Quiet and Noise Reduction,
running more stable,≤50dB silent printing



Newly upgraded chip of Brand core
High-speed computing; high-performance,
32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction,memory protection unit


Auto Leveling

Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,
36-point precise leveling.


Ready to Print

Integrated design, easy to assemble


Ultra-Silent Printing

Ultra-quiet mechanical structure


Glass Heat Bed

The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.


Dual Cooling Fans

The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.


Double Gears Direct Extrusion

Conveying material uniform without winding


Automatic Filament Detection

Broken material can be automatically detected


Multi Connection

Support SD card, USB and USB-C, supports online printing


Dual Z-Axis with Synchronous Belt

Improve the accuracy,
keep the “layer shift” away.


Belt Tensioner on X/Y Axis

Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.


Resume printing function

No need to worry about sudden power failure.


Large Printing Size

400*400*400mm
Creates more possibilities





3.5" large touch screen


The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.


Stepping Drive - Ultra Quiet TMC

Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing


Newly upgraded chip of Brand core

High-speed computing; high-performance,
32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction,memory protection unit



Parts List

Filament
User manual
Filament holder
Allen wrench
M5*8 (2pcs)
M5*12 (6pcs)
SD card
Teflon tube
Nozzle
Power cable
Wrench

Parts List

Filament

User manual

Filament holder

Allen wrench

M5*8 (2pcs)

M5*12 (6pcs)

SD card

Teflon tube

Nozzle

Power cable

Wrench



MINGDA Care

Firmware
/ GD_MP
ST_MP
Slicer
/ Cura
Test model
/ Vase.gcode
Service
We offer excellent after-sales service. Please click here for details.

MINGDA Care

Firmware
/ GD_MP
ST_MP

Slicer
/ Cura

Test model
/ Vase.gcode


Service
We offer excellent after-sales service. Please click here for details.
